Thread: Which side of a Merge Join gets executed first? Do both sides always get executed?
The attached query plan is from 11.
We are getting Merge Joins on both sides of the UNION. In both cases, the first node under the Merge Join returns 0 rows but the other side of the Merge Join (the one being sorted) is executed and that's where all of the time is spent.
On the surface, I don't see any way from the attached explain plan to determine which side of the Merge Join is executed first. Some questions:
- Which side gets executed first?
- How would one tell that from the json?
- Have there been any relevant changes to later releases to make that more apparent?
- Whichever side gets executed first, is the execution of the side that would be second get short circuited if 0 rows are returned by the first side?

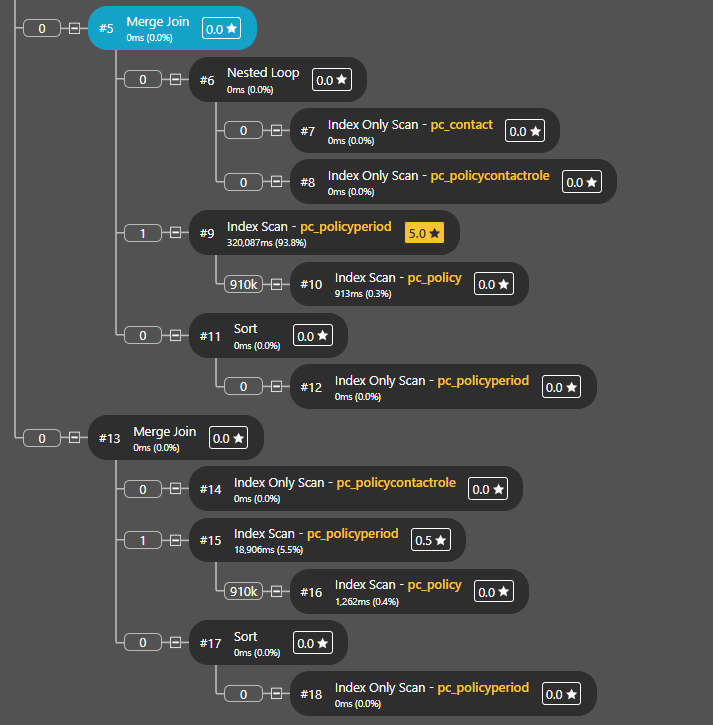

Here's a screenshot from pgMustard.
- Nodes 6 and 14 (the first node under each of the Merge Joins) each return 0 rows
- Nodes 9 and 15 are the expensive sides of the Merge Joins and return lots of rows
NOTE:
- The query plan in 13 is slightly different, but still includes the Merge Joins.
- Replacing ANY(ARRAY(<subquery)) with IN(<subquery>) fixes the performance problem, but we'd still like to understand the execution characteristics of Merge Join
Thanks,
Jerry
Attachment
Thanks. Does this make sense?
- There are 3 nodes under the Merge Join
- The first node is an InitPlan, due to the ANY(ARRAY()) - that gets executed and finds 0 matching rows
- The second node is the outer node in the Merge Join and that is the expensive node in our query plan
- The third node is the inner node in the Merge Join and that node references the SubPlan generated by the first node. The IndexCond has "id = ANY($2) AND ..." and the comparison with the result of the SubPlan does not find a match, so that's where the short-circuiting happens.
Here are the relevant lines from the node (12) accessing the result of the SubPlan:
"Plans": [
{
"Node Type": "Index Only Scan",
"Parent Relationship": "Outer",
"Parallel Aware": false,
"Scan Direction": "Forward",
"Index Name": "policyperi_u_id_1mw8mh83lyyd9",
"Relation Name": "pc_policyperiod",
"Alias": "qroots0",
"Startup Cost": 0.69,
"Total Cost": 18.15,
"Plan Rows": 10,
"Plan Width": 8,
"Actual Startup Time": 0.045,
"Actual Total Time": 0.045,
"Actual Rows": 0,
"Actual Loops": 1,
"Index Cond": "((id = ANY ($2)) AND (retired = 0) AND (temporarybranch = false))",
Here's the screenshot again:
Thanks,
Jerry
On Wed, Dec 20, 2023 at 10:32 AM Frédéric Yhuel <frederic.yhuel@dalibo.com> wrote:
Le 20/12/2023 à 15:40, Jerry Brenner a écrit :
> Whichever side gets executed first, is the execution of the side that
> would be second get short circuited if 0 rows are returned by the first
> side?
Indeed, if 0 rows are returned from the outer relation, the scan of the
inner relation is never executed.
Best regards,
Frédéric
